Technical Illustration

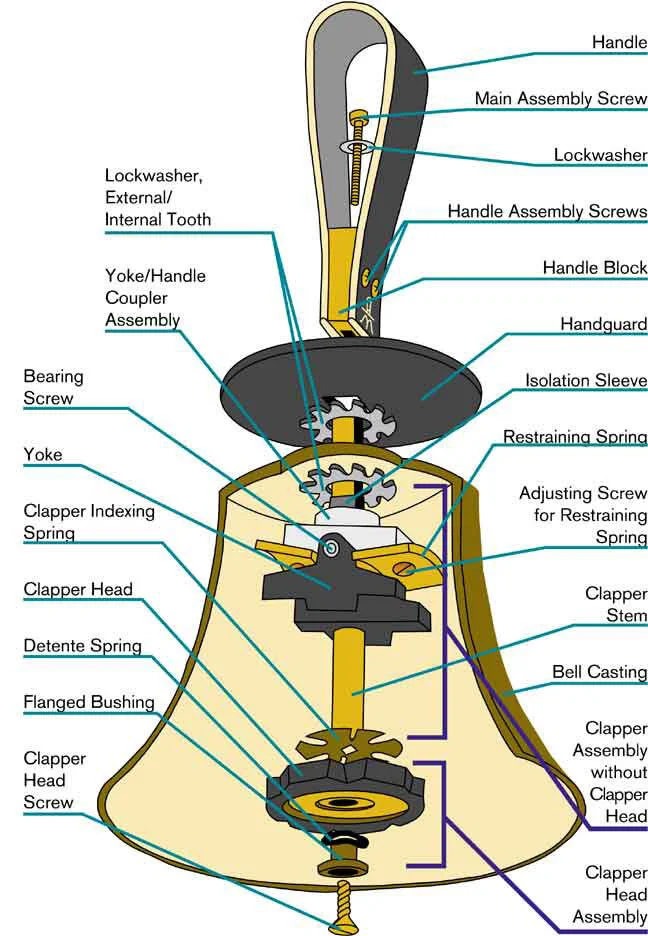

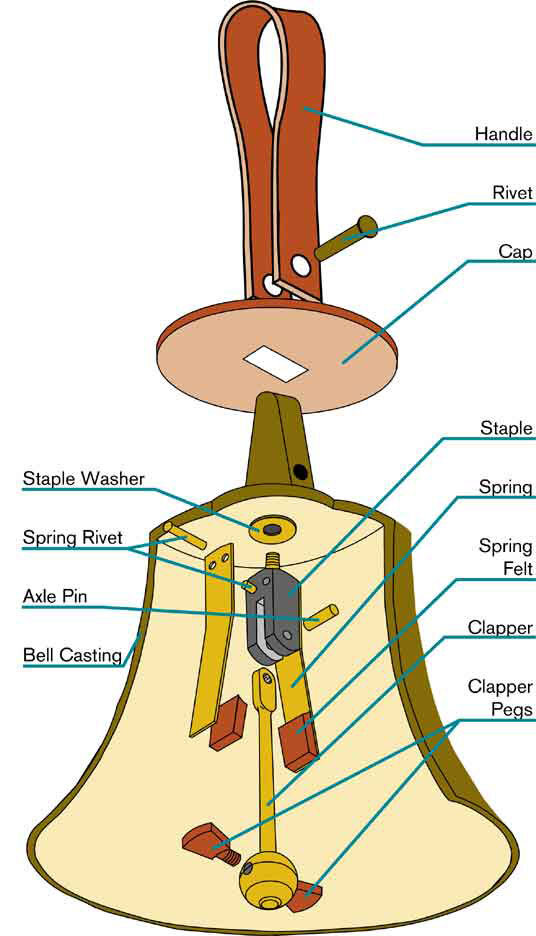

This was my solution to helping customers figure out which bell parts they needed to order. At the time I did these, there were no easily accessible diagrams for ringers to use, so I made them part of our annual service-based direct mail promotion. These diagrams were so useful that several competitors “borrowed” them for use in their own promotions. Further on, these were added to the on-demand boutique products for those loyal to their brand.
